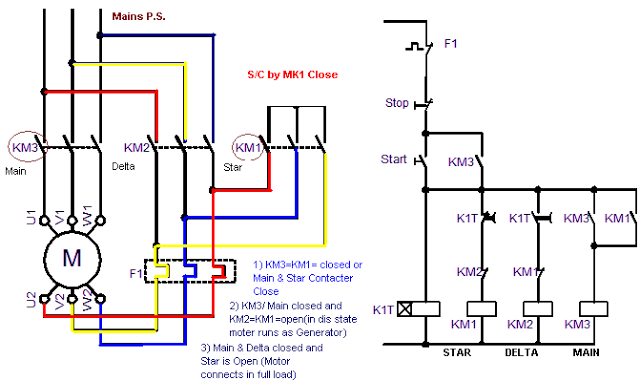

In the above star delta starter control circuit wiring diagram with timer and normally close push buttonnormally open push button switch. How does the star delta starter works. Star delta starter is a common used in domestic and industry sector to drive variant application such as chiller water pumpmachineryair compressor and many more equipment.

it leadership certifications blank face template pdf 2012 jeep grand cherokee radio wiring diagram general ledger bank ledger template conflict minerals reporting template access database employee training plan and record templates how well do you know the bride printable kenwood ddx7015 wiring diagram

Star Delta Starter Electrical Notes Articles

Problem In Star Delta Starter In Air Compressor Electrical

Automatic Star Delta Motor Starter Electrical Technology

Star delta starter timer off power and wiring control circuit with practical in urdu star delta connection in hindi hindiurdu start delta easy connection in motors electrical terminal.

Power wiring diagram of star deltum starter. The peak starting torque is 33 of full load torque. As we have already shared the star delta y d 3 phase motor starting method by automatic star delta starter with timer. Star delta starter can be used only for low to high power three phase induction motors. Drawings explained step by step.

How to wire star delta starter. Now we are going to share three phase motor connection stardelta starter without timer power control diagrams. Star delta starter three phase motor connection without timer power control wiring diagrams. In control wiring diagram all magnetic contactors coils are rated 220 vac.

More electrical tips and diagrams wwwaboutelectricitycouk like subscribe and dont skip. The peak starting current is 13 to 26 of full load current. Characteristics features of star delta starter. So this time i want share my simple star delta circuit diagram completed with power and control line circuiti hope it can be as basic reference for all electrician about star delta starter diagram.

The starting current is 33 of full load current for star delta starter.
